At the moment I am working on a scratch build of the X-33. This is my first attempt at a scratch build, so I am working from the "KISS" view point, "Keep It Simple, Stupid". I didn't worry about little things like scale. I found a nice little set of multi- view line drawings at a site that is no longer available since the program was shut down. Here they are for those of you wanting to try a similar project:
|
||

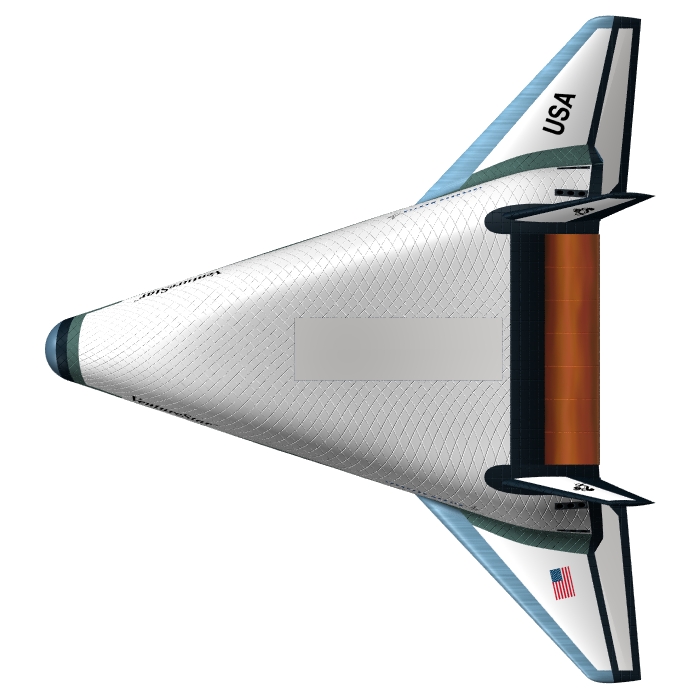

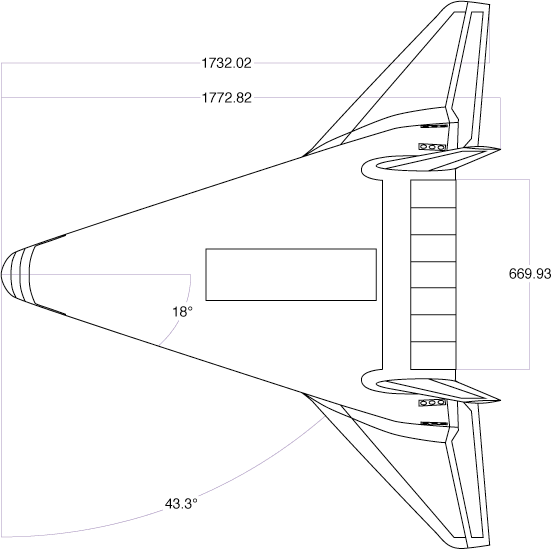

Top |

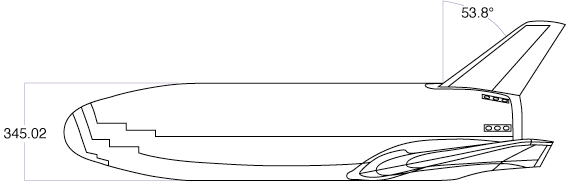

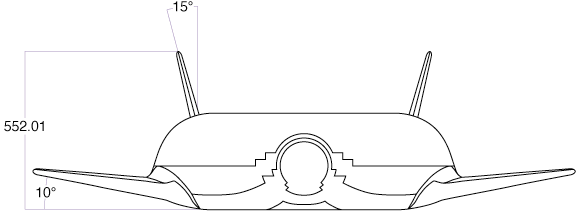

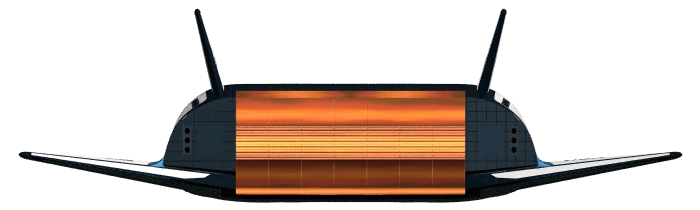

Back Side Front |

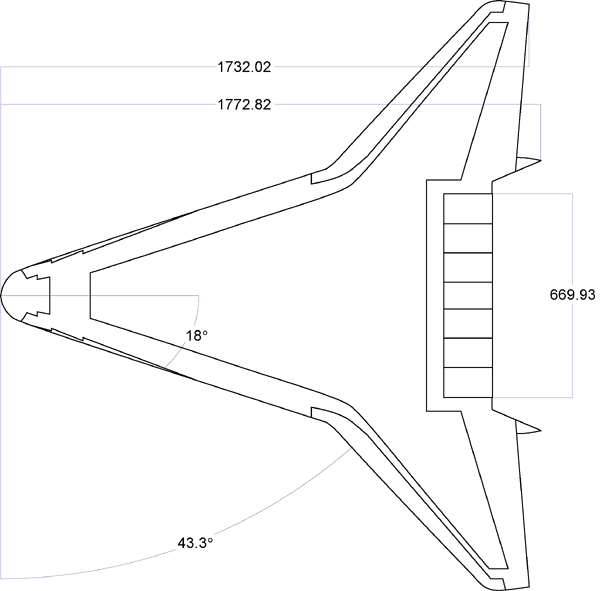

Bottom |
|
||
Top |

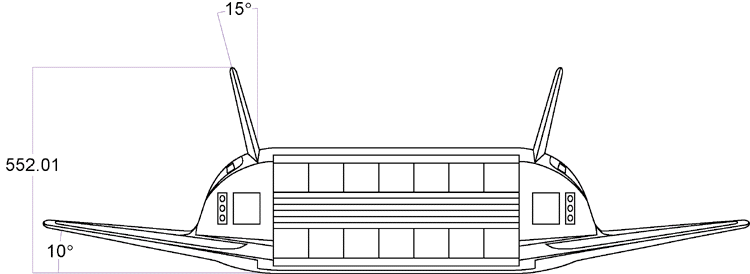

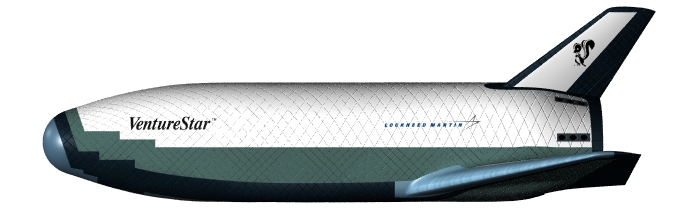

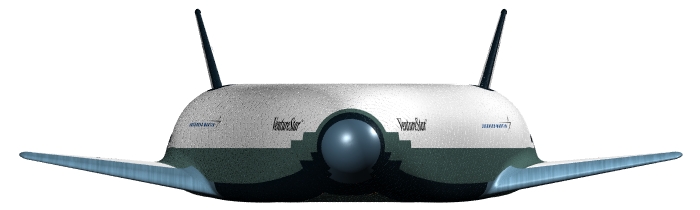

Back Side Front |

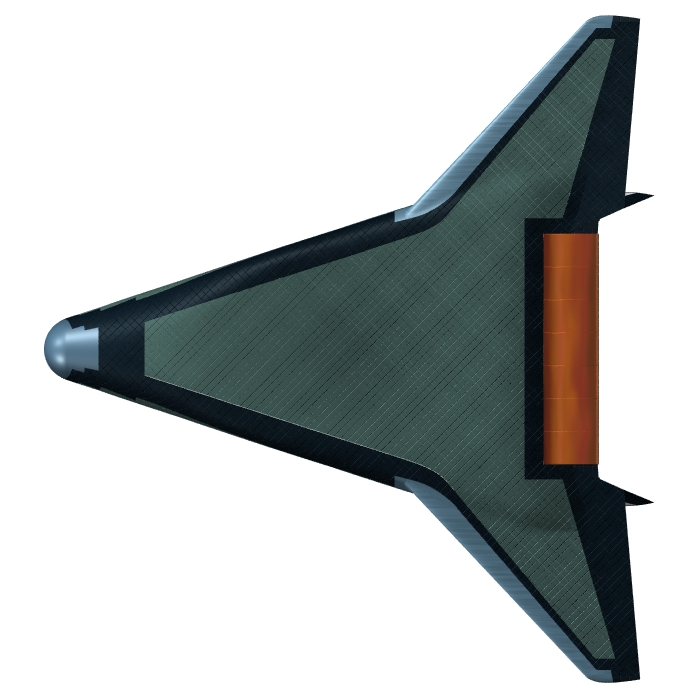

Bottom |
The way I went about making this model was actually very simple. I printed out the top drawing and cut it down to size. The cut down image was tacked onto a large piece of balsa wood and I used a scroll saw to cut around it on the line. After that I just used the old eyeball to trim it to the rough shape shown on the side view with an x-acto knife. After that I simply took it to the power sander and manually with sand paper when I got close to the final shape. The wings were done the same way with smaller balsa pieces.

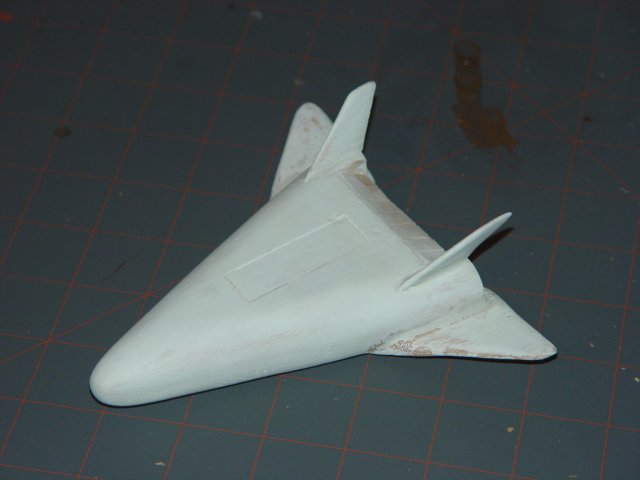

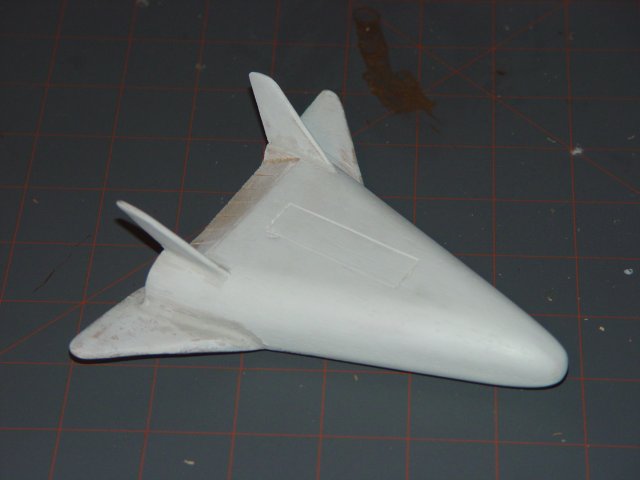

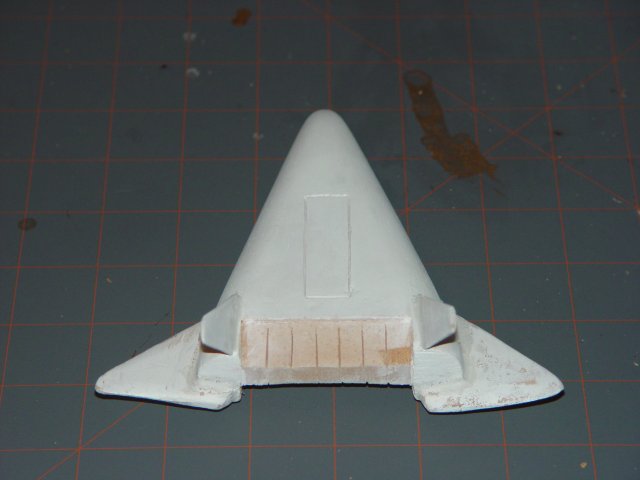

I still have quite a ways to go, especially on the rear end, but here are pictures of what I have finished on it so far:
I do not consider this a fantastic model, but it has been excellent as a learning experience. I will post more as I progress.
Don
